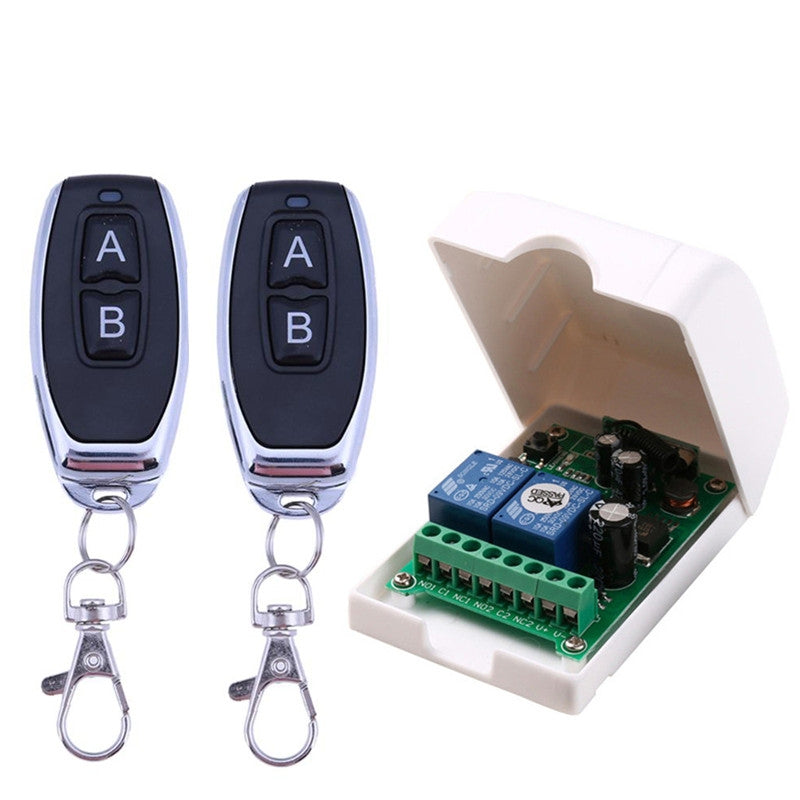

DC 12V 24V 48V Universal Electric Door RF Wireless Remote Control Relay Receiver Set
35% off
₹ 2,748.00
₹ 1,773.00
Taxes included.
Shipping calculated at checkout.
In stock!
Couldn't load pickup availability
Guaranteed Safe Checkout
Estimated Delivery Time: 18–20 Business Days
This timeline includes:
- Order verification & quality check
- Packaging and dispatch
- Transit & customs clearance (if applicable)
- Final local delivery
Description
Description
Shipping & Returns
Shipping & Returns

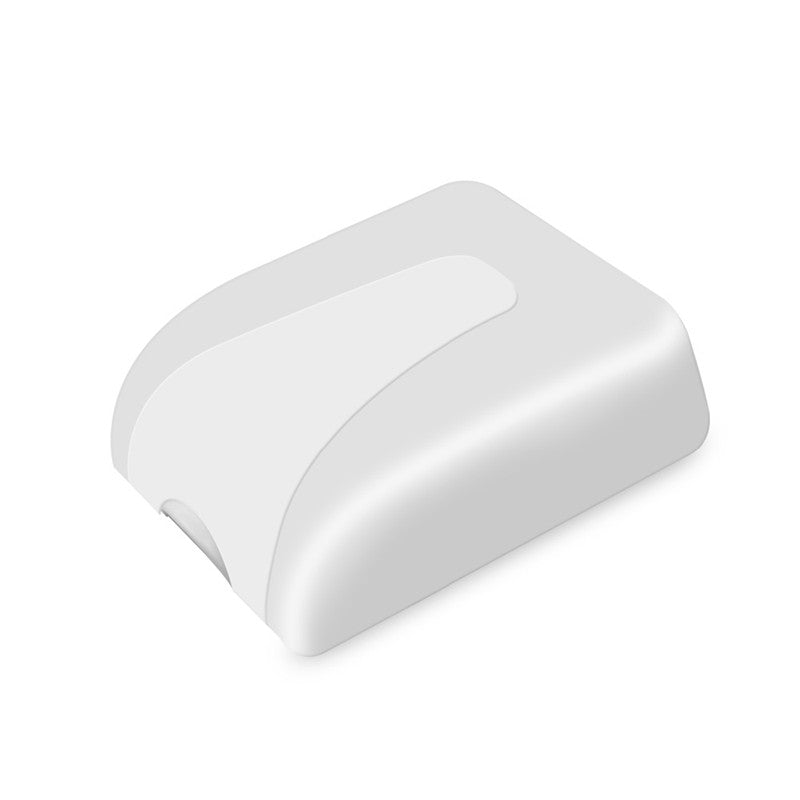

1. Shell material: ABS
2. Product size: 68x48x18mm (excluding shell)
3. Product net weight: 25g (excluding shell)
4. Working frequency: 315MHz/433.92MHz

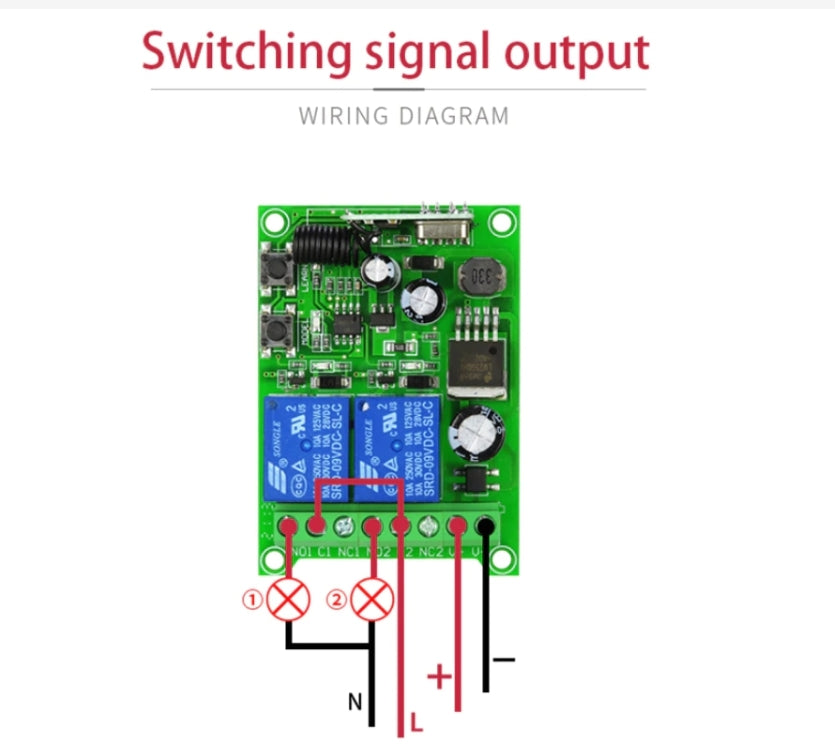

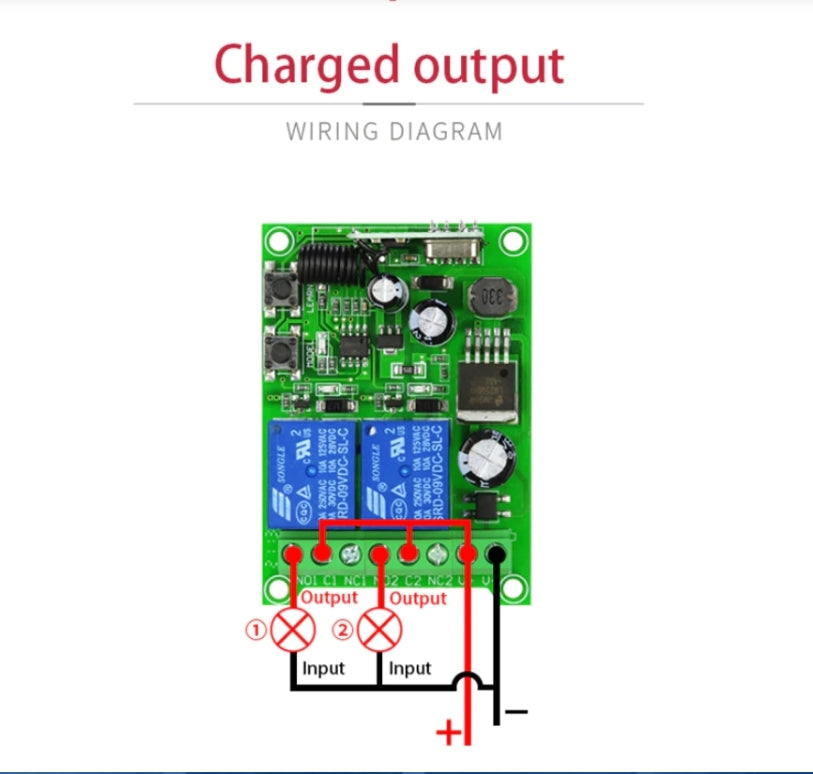

5. Output mode: terminal block
6. Control method: remote control with the same frequency
7. Working mode: inching, self-locking, interlocking
8. Working voltage: DC12-36V
9. Standby current: 9.8mA
10. No-load maximum operating current: 96mA
11. Receive sensitivity: -105dBm
12. Working temperature: -20-70 degrees Celsius
Notice:
1. The supply voltage cannot exceed the working voltage.
2. In an environment with strong wireless interference, the receiving distance may be reduced.
3. Keep out of reach of children.
4. It is forbidden to use it in a humid environment, otherwise it may cause damage to the controller.
2. Product size: 68x48x18mm (excluding shell)
3. Product net weight: 25g (excluding shell)
4. Working frequency: 315MHz/433.92MHz
5. Output mode: terminal block
6. Control method: remote control with the same frequency
7. Working mode: inching, self-locking, interlocking
8. Working voltage: DC12-36V
9. Standby current: 9.8mA
10. No-load maximum operating current: 96mA
11. Receive sensitivity: -105dBm
12. Working temperature: -20-70 degrees Celsius
Notice:
1. The supply voltage cannot exceed the working voltage.
2. In an environment with strong wireless interference, the receiving distance may be reduced.
3. Keep out of reach of children.
4. It is forbidden to use it in a humid environment, otherwise it may cause damage to the controller.
